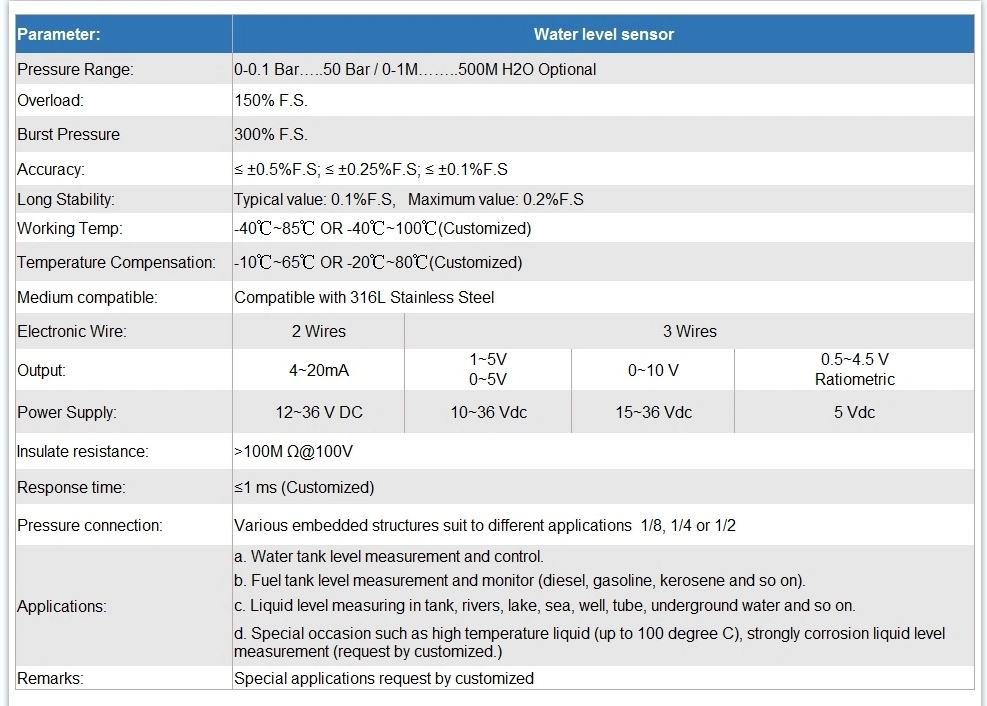

Specification:

-Range (FS): 1 2 5 10 20 50 100 200 mH2O
-Overpressure: 2 times FS
-Accuracy: 0.5%FS
-Stability: range<20mH2O, ±0.2%FS
range20mH2O, 20mmH2O
-Thermal drift: zero span
range>10mH2O 0.02%FS/C 0.05%FS/C
range10mH2O 0.05%FS/C 0.05%FS/C
-Application temp. range: -10~80C
-Storage temp. range: -40~100C
-Power supply: 11~28VDC
-Output signal: 4~20mADC(2-wire)
-Load (Ω): <(U-11)/0.02
Construction Material
Housing: stainless steel 316
O-ring: Viton
Rubber casing: NBR
Cable: φ7.5mm polyethylene cable
Diaphragm: stainless steel 316L

Features:

-Integrated construction, unnecessary to do outer adjustment
-sensor housing protection IP68, connection box protection IP65;
-Cost-efficient, high reliability and stability;
-RoHS approved
-Explosion-proof product conforms to Exia CT6 of Standard

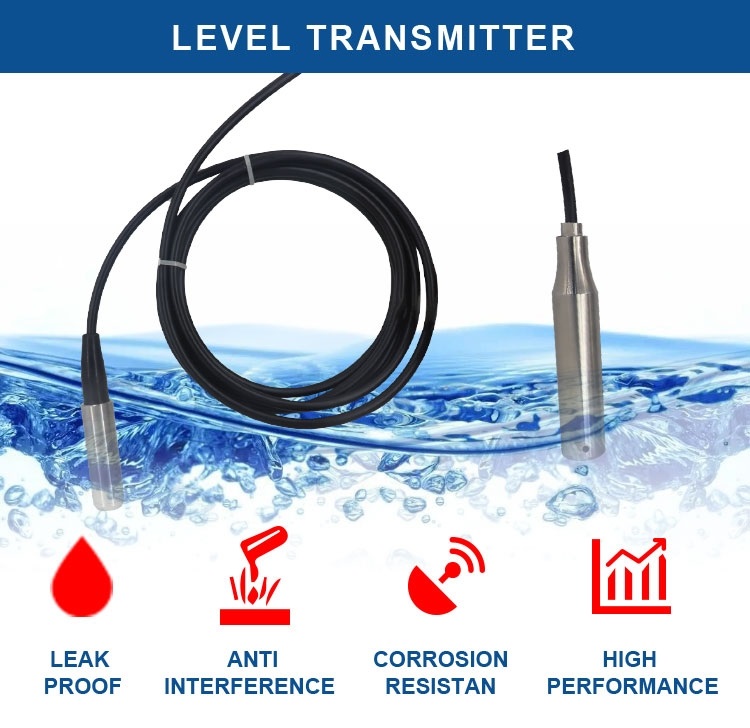

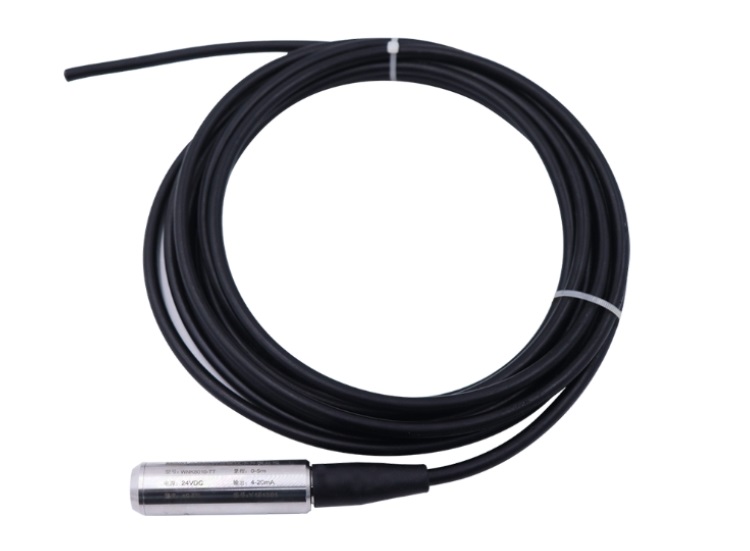

Introduction:

This sensor is full sealed submersible level transmitter. It is made by building in high stable and reliable OEM piezo-resistive pressure sensor and high
accurate circuit board into the stainless steel housing. Integrated construction and standard signal provide the user easy and convenient application in the
local working place. The special cable connects with housing, can be immerged into the media for a long time.

The level transmitter has compact size, light weight and good stability; it can be used for water or liquid measure and control of medicine, metallurgy,
electricity, mine, city water supply and drainage and hydrology, etc.


Outline Dimension:










Electric Connection:
سطح سنج مایعات هیدرواستاتیک
این سطح سنج دارای بدنه فولاد ضد خورندگی استیل 316 می باشد ، همچنین ساختار بدنه آن طوری طراحی شده است که دارای ابعاد کوچک و نصب آسان میباشد. این سنسور قابلیت نصب
درون چاهها و فضاهای کم را دارد. سنسور هیدرواستاتیک قابلیت اندازه گیری فاصله تا 200 متر را  دارا می باشد که خروجی 4 تا 20 میلی آمپر آن دو سیمه و به صورت سری با خط ولتاژ تغذیه
است. مشخصات کامل فنی آن در زیر ذکر شده است.

جهت اطلاع از قیمت این سنسور ، مقدار ارتفاع قابل اندازه گیری و طول کابل سنسور را به ما اعلام نمایید.
سنسور فاصله یاب آلتراسونیک مدل URF
Hydrostatic Level Measurement
